Stabilising internal, non-load bearing walls
Uses
Bracket which stabilises internal, non-load bearing walls from bottom chords of trusses
Features

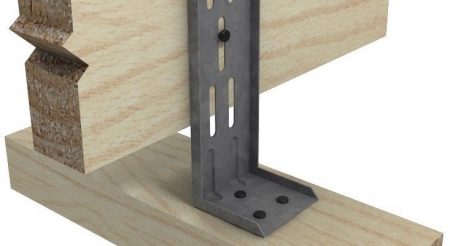

Pryda Hitch stabilises the tops of internal walls by fixing them laterally to the bottom chord of roof trusses.
Pryda Hitch has built in slots which allow for vertical movement in the truss over time without transferring load to the wall.
The slots also cater for any vertical movement of the wall due to foundation settlements, without inducing forces on the truss.
Installation
For application and design capacity information, refer to the Pryda Connectors & Tie Down Connectors Guide.
Pryda Hitch – Internal Wall Hitch
| Product Code | Size |
|---|---|
| PHH | Coined 114 x 46 x 38 x 0.8mm |
| PHL | Plain 100 x 44 x 36 x 1.2m |
| PHS | Super Heavy Duty Plain 130 x 50 x 47 x 2.0mm |
Merchant Packs – individually bar-coded
| Product Code | Size |
|---|---|
| MPPHH | Coined 114 x 46 x 38 x 0.8mm |
