For connecting timber at a 45 degree angle

Uses

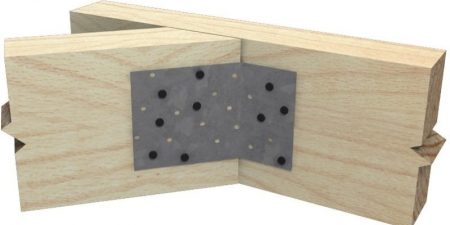

Pryda Mitre Plates are used for connecting creeper trusses to hip trusses

Features

Mitre Plate MT is used for bottom chord connection and MT15 is for the top chord joint.

Both plates are installed using 5 x galvanised Pryda Timber Connector nails each side of the joint.

Installation

For application and design capacity information, refer to the Pryda Connectors & Tie Down Connectors Guide.

Pryda Mitre Plates

Product CodeSize
MT78 x 126mm bent 45deg
MT1578 x 126mm bent 45deg. Skew Left and Right
