Multi-purpose metal connectors for timber construction
Uses

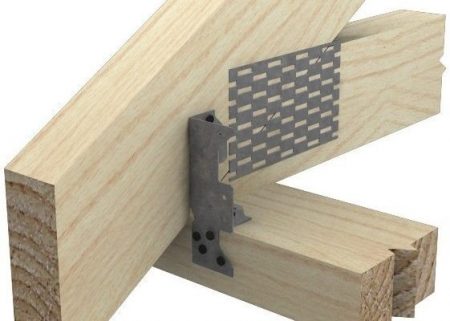

Pryda Multigrips are ideal connectors for many uses in timber framing. They are suitable for high load applications such as a tie down connector for trusses or rafters to top plates and for fixing joists to the face of bearers.
Pryda Minigrips provide a more economical connector for the numerous, more lightly loaded joints in houses and other buildings. Typical applications include Face Fixing Beams, and Stud/Column fixing.
Features
Multigrips
FUNCTIONAL: Each of the tabs can bent in or out to 90° or other angles to suit the application.
STRONG: Suitable for high load applications such as a tie-down connector.
VERSATILE: Along with being used as a strong tie-down connection, can also be used in numerous right-angle connection application.
Minigrips
EASY: Easy to use for numerous right-angle connections.
ECONOMICAL: Suited for lightly loaded joints.
ADAPTABLE: Multiple nails holes to make fastening easy.
Installation
For application and design capacity information, refer to the Pryda Connectors & Tie Down Connectors Guide.
Pryda Multigrips 1.0mm
| Product Code | Size |
|---|---|
| MG | 100 x 36mm |
| MGL | 132 x 36mm Long Grip Profile |
| MG/S | Stainless Steel (445 M2 Grade) 100 x 35mm |
Merchant Packs – individually bar-coded
| Product Code | Size |
|---|---|
| MPMG | Multigrip 100 x 36mm |
| MPMGS | Minigrip 56 x 36mm |
Stainless Steel
| Product Code | Size |
|---|---|
| MPMG/SS | Minigrip 57 x 35mm |
| MG/S | Multigrip 100 x 35mm |
