Hammer applied nailplates for many joint types
Uses

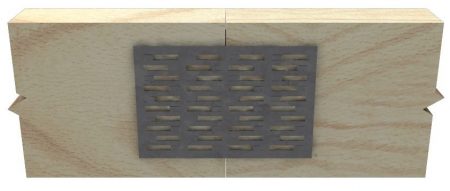

Pryda Knuckle Nailplates are galvanised steel connectors with in-built, bent-up “knuckle” nails. These plates are ideal for many structural and non-structural timber jointing and timber protection uses.
Among the many uses of Knuckle Nailplates, the most common are jointing of wall frames together on-site, on-site splicing of timber beams, reinforcement of corners of boxes and bins, and reinforcement of bolted joints (eg Cable Truss)
Features
Generally, Knuckle Nailplates will:
- Provide a strong, economical and easy-to-use means of jointing timber together.
- Protect timber from damage as they resist splitting due to drying of the timber, nailing near ends or other causes eg Bin Straps.
- Also reduce timber damage by resisting the effects of impact loads such as from fork lift tyne strikes.
- Distribute concentrated loads over a wider area, eg they increase the strength of bolted joints.
Application
For application and design capacity information, refer to the Pryda Timber Connectors Nailplates Guide.
Pryda Knuckle Nailplates 1.0mm (33mm wide)
Product Code | Size |
---|---|
TP4R4 | 33mm wide x 127mm |
TP6R4 | 33mm wide x 190mm |
Pryda Knuckle Nailplates 1.0mm (38mm wide)
Product Code | Size |
---|---|
MP4R5 | 38mm wide x 127mm |
MP6R5 | 38mm wide x 190mm |
Pryda Knuckle Nailplates 1.0mm (67mm wide)
Product Code | Size |
---|---|
MP4R8 | 67mm wide x 127mm |
MP6R8 | 67mm wide x 190mm |
MP8R8 | 67mm wide x 254mm |
Pryda Knuckle Nailplates 1.0mm (76mm wide)
Product Code | Size |
---|---|
MP2R10 | 76mm wide x 63mm |
TP3R10 | 76mm wide x 95mm |
MP4R10 | 76mm wide x 127mm |
MP6R10 | 76mm wide x 190mm |
MP8R10 | 76mm wide x 254mm |
Pryda Knuckle Nailplates 1.0mm (134mm wide)
Product Code | Size |
---|---|
MP4R16 | 134mm wide x 127mm |
MP6R16 | 134mm wide x 190mm |
MP8R16 | 134mm wide x 254mm |
