Introducing the new stick built framing screws to the Pryda FastFix™ family that provide a safer, stronger, faster solution for securing wall plates in stick-built frames.
The stick built framing screw comes in two sizes 135mm & 175mm to suit stick built frames.

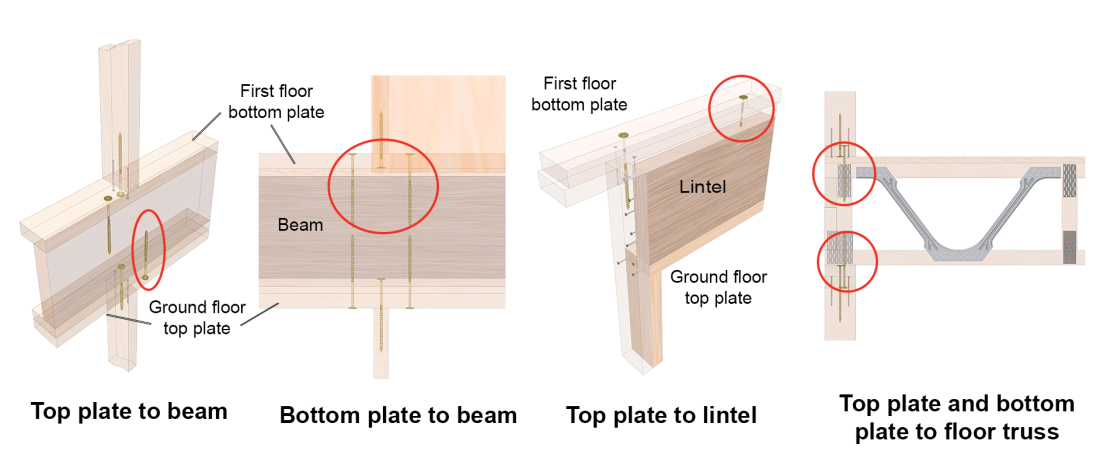

USES
- Single plates to stud connections
- Double plates to stud connections
- Double plates to lintel connections
- Double/Single plate to beam – 2 storey
- Floor System between joist continuity blocking tie-down
- Braced wall connection to suit 6kN/m Plywood bracing unit to AS1684
FEATURES
FASTER = Uniquely designed screw tip gives a rapid start, and the coarse thread significantly reduces driving time.
SMARTER DESIGN = Head and thread design offers superior hold-down strength and high resistance to withdrawal.
EASIER = No special tools required, a standard 5mm hex drive and an impact driver is all that’s required.
GREATER CAPACITY = Increased thread length for greater capacity than most flat metal stud ties.
PROVEN ENGINEERING = Pryda FastFix™ Screws have been laboratory tested for Stud to Wall Plate connections.
QUALITY AND FINISH = Provides better quality outcomes in the build process especially the installation of plasterboard.
PRONOUNCED KNURL = Reduces the chance of splitting by enlarging the hole slightly and preventing the unthreaded part of the shank from binding with the timber.
STICK BUILDING FRAMING SCREW DESIGN
Product Specifications
| Product Codes | WM8135PS and WM8175PS |
| Identification Tag Code | TAG – 135 & TAG – 175 |
| Screw Size | M8 x 135mm or 175mm |
| Drive Type | 5mm Hex Drive |
Technical Documents
Pryda Stick Built Framing SCREW Assembly
